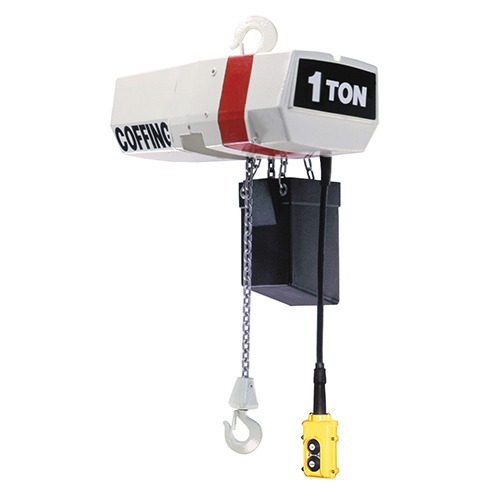

Coffing EC-V Models offer the same high performance for heavy duty industrial service as the EC Model with a Variable Speed option. Designed for safety, the EC-V incorporates mechanical load brake, motor brake, and overload clutch as standard.
Coffing EC-V Models offer the same high performance for heavy duty industrial service as the EC Model with a Variable Speed option. Designed for safety, the EC-V incorporates mechanical load brake, motor brake, and overload clutch as standard.
CAPACITIES & LIFTS
Rated loads from 1/4 to 5 Tons, with 10, 15, and 20-foot standard lifts. Other lifts available. Standard push button drop is 4-feet less than lift.
VOLTAGE & MOTOR OPTIONS
115/230, 208 – single phase; 230/460, 208, 220/380, 575 – three-phase. 60-hertz standard, 50 hertz available. Two-speed motors available (3 to 1-speed ratio).
SUSPENSION OPTIONS
Rigid or swivel top hook, lug, plain, geared, and motorized trolley available.
SMALL FRAME DESIGN
Features housings of cast aluminum alloy construction for minimum weight. Engineered and designed for use with motors up to 1 HP.
LARGE FRAME DESIGN
Features load bearing housings of ductile iron construction for maximum strength. Non-load bearing housings of cast aluminum alloy for minimum weight. Engineered and designed for use with higher torque 2 and 3 HP three-phase motors.
DURABLE CONSTRUCTION
Built-in compliance with ASME/ ANSI B30.16 and CSA standards
